High Quality Non Woven Embossing and Rewinding Machine

The process method of Non Woven Embossing and Rewinding Machineis is unwinding--embossing--cutting--rewinding

  • brand:

    RX
  • item no.:

    RX-1200
  • payment:

    L/C 、T/T
  • product origin:

    China
  • color:

    Customized
  • shipping port:

    Xiamen
  • lead time:

    120 days
product details

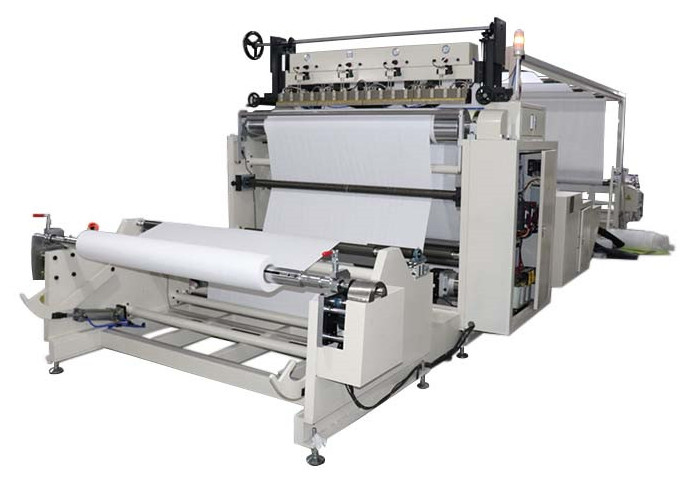

High Quality Non Woven Embossing and Rewinding Machine

Non Woven Embossing and Rewinding Machine

Applicable materials

Spunbond non woven and hot air through non woven

Main technical parameters

1.

Design speed

90m / min

2.

Working speed

70m / min (Hydrophilic n.w.)

60m / min (Hot air through n.w. )

3.

Applicable materials

Hot air through n.w.

Hydrophilic n.w.

4.

Embossed width

1200mm (max width: 1240mm)

5.

Unwind diameter

Ø 1200mm

6.

Winding diameter

Φ800mm

7.

Operation mode

the right-direction machine.(Facing the receiving end, the right side is the operating side)

8.

Machine size

5500 * 3600 * 1500 mm

9.

Air expansion shaft

3 " aluminum alloy air expansion shaft, material for key strip type, material for plate type.

10.

Guide roller

3 " hard oxidation treatment

11.

Pneumatic components

AirTAC brand

12.

Power

60kw

13.

Voltage

380V ,50HZ three phase

14.

Air compressor specifications

air compressor: 5.5KW ,0.67m³/min

gas storage tank: 0.6m³

Air pressure: 0.8MPa,

operating pressure: 0.1-0.5MPa

Machine parts

Frame

3 set

Unwind component

1 sets

Preheat components

1 sets

Embossing components

1 set

Cooling package

2 set

Coupling Device

1 set

Cut components

2 sets

Rewinding system

1 set

Transmission and control system

1 set
