RX-INK400 Inverter Motor Type Baby Diaper Machine

RX-INK400  Inverter motor type baby diaper machine is a semi-auto machine.It can do 4 sizes.
  • brand:

    RX
  • item no.:

    RX-INK400
  • payment:

    L/C,T/T
  • product origin:

    China
  • color:

    Customized
  • shipping port:

    Xiamen
  • lead time:

    120 days
product details

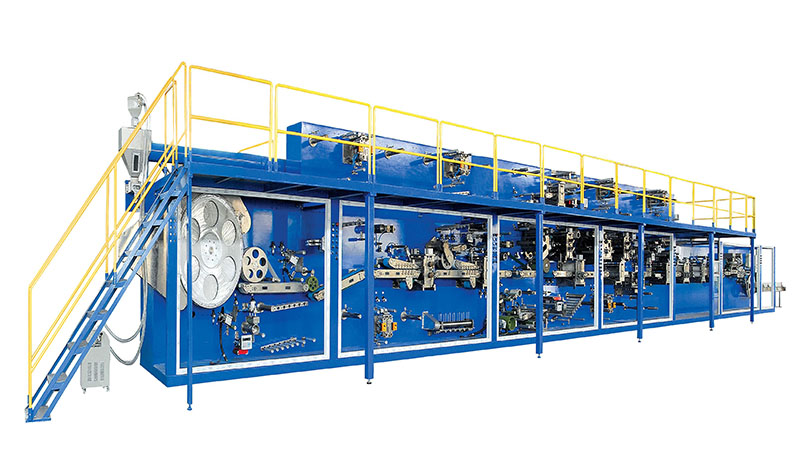

RX-INK400  Inverter Motor Type Baby Diaper Machine

baby diaper machine




Main functions and features

1.Qualified rate 98%(calculate based on 7.5 hours, the rate

   between qualified products and  total production quantity, except

   substandard products caused by glue applicator error)

2.The machine can make 4 sizes

3.Container 5×40HQ

4.Total weight about 50 tons

5.Working space 30-40×7×5M  (L×W×H)



Machine parameter


Model  RX-INK400
Name  Inverter Motor Type Baby Diaper Machine
Design speed 500 pcs/min
Working speed 400 pcs/min
Qualified rate

98(calculate based on 7.5 hours, the rate between qualified products and total

 production quantity, except substandard products caused by glue applicator error)

Production efficiency

90( calculate based on 7.5 hours, the rate between real production quantity and

 theory production quantity)

Capacity 180KW
Power Three phases four wires 380V±5%/50Hz  (ground wire)
Air pressure 0.6mpa, 1.8m3/min
Total weight About 50 tons
Machine size 30×5×3M (L×W×H)
Working space 30-40×7×5M  (L×W×H)
Machine color Customized
Product size Customized  ( 4 sizes)
Machine direction Customized
Container 40HQ



Machine description


Machine total system

Pulp crusher system

SAP feeding system

Drum forming system

Lower tissue paper feeding system

Upper tissue paper feeding system

Core wrapping system

Smooth roller compacting system

Web roller compacting system

ADL feeding & cut system

Core cutting system

Hydrophobic non woven feeding system

Hydrophilic non woven feeding system

Wasit band feeding & cut system

PE film feeding system

Back non woven feeding system

Frontal tape feeding system

Leg Spandex feeding system

Side tape feeding system

Arc cutting system

Edge scrap collecting system

Vertical folding system

Product compacting system & final cutting

NO.1 rejection output

Bi & Tri folding system

NO.2 rejection output

Out put system



Main Spare parts


Low-voltage apparatus Schneider France
Sensors Banner USA
Web guider KSC China
FIFE USA
BST USA
Touch screen Banner USA
PLC control system Mitsubishi Japan
Siemens Germany
AB      USA
Cutter material D2 USA
M7 USA
T15 USA
Temperature control system Omron    Japan
HB China
Bearing HRB China
NSK Japan
SKF Sweden
Timing belt OPTIBELT Germany
Gates USA
Conveying belt HABSIT Swaziland
Nitta Japan
Pneumatic system SMC Japan
AIRTAC Taiwan



About RX



Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team.

More than 15 years experience focussing on hygiene machines.

10 CNC processing machine and  40 other processing machines.

Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on.

Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers.
