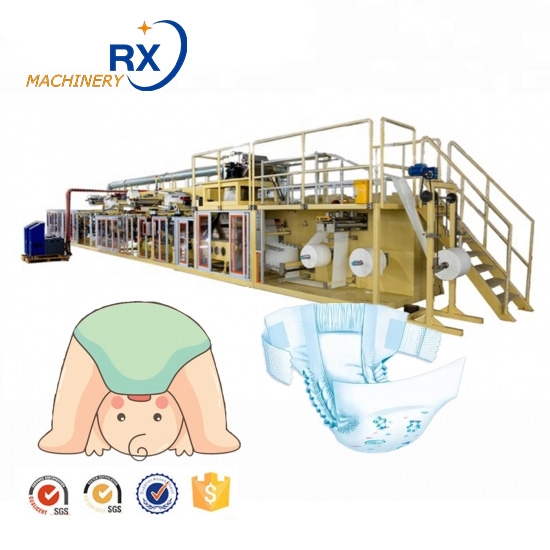

This is an ordinary T shape baby diapers. Product advantage: basically boundless material loss and low cost. Applicable market: foreign country market. Machine operation: the machine operation difficulty is low, the production station of baby diaper product is less, and this equipment has been very mature.
read more800 PCS/Min Full Automatic Sanitary Napkin Machine Factory/ Manufacture Main Technical Parameters of Sanitary Pad Making Machine Item Sanitary napkin production line Output products winged sanitary napkin Control System Full servo / Semi servo / Frequency motor / Economical Part Description Most of the spare parts are under numerical control precisely processing. Key mechanical parts are under CNC processing. Main outsourcing parts are world famous brand. Operation Interface Industry PLC, with humanistic designing and optional collection for production record Certificates CE, ISO9001:2008, SGS Design Speed 1000 pcs/min Production Speed 800 pcs/min Overall Size of Equipment 31(L) * 2(W) * 2.5(H) m Machine Power Approx 240KW (380V, 50Hz) Optional Functions 1. Camera monitoring system (control online size checking, location inspecting, missing inspecting, stain spot scanning and so on.) 2. Material roll auto unwinding servo control 3. Material roll auto unwinding converter control 4. Automatic Packing machine 5. Full-servo control stacker (auto bagging machine) 6. Automatic bagging sealing machine Product Detail Images About RX Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team. More than 15 years experience focussing on hygiene machines. 10 CNC processing machine and 40 other processing machines. Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on. Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers. Factory Processing Map Packing and Packaging Diagram
read moreFactory Price Disposable Incontinence Hospital Under Pad Machine Main Function Features of Under Pad Machine 1. Single drum former device. Crusher can take both treated and untreated fluff pulp. 2. Fluff pulp feeding is controlled by servo motor. Or air laid paper can be used instead of fluff pilp to produce high quality pads. 3. SAP feeding device. SAP is added mixed with fluff pulp and controlled by servo motor. If use air laid paper to instead of fluff pulp, then SAP feeding device can be used as spare device. 4. Tissue paper double sides feeding units. If use air laid paper to instead of fluff pulp, then tissue paper is unnecessary to use. 5. Net shape pressing device. Cylinder pressing. 6. Fluff core or air laid paper position adjusting device. 7. Fluff core or air laid paper cutting device. Cylinder pressing. 8. Bottom film and top sheet materials feeding units, Glue adding and fixing shape by pressing. 9. Pad vertical folding 10. Wastes rejection device 11. Pad crosswise folding 12. Auto-counting and arrange coming out. (The main machine can link with stacker machine to do automatic packing. ) Under Pad Making Machine Configurations Design Speed 300m/min Stable Production Speed 220-250m/min Start Powerduction Speed 250KW Installed Rated Power 150-200KW Supply Power 380V AC, 50HZ, 3 phase 5 wire ( According to customer) Machine Weight 70Ton Machine Size 25.0m*7.0m*5.0m(L*W*H) Efficient rate ≥ 85% Air 0.6-0.8 M Pa Finished Products under pads and puppy pads Packing Antirust Oil& PE Film Cover & Seaworthy Wooden Box , 2*40HQ Delivery time 120 Days after received the deposit of under pad making machine About RX Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team. More than 15 years experience focussing on hygiene machines. 10 CNC processing machine and 40 other processing machines. Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on. Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers. Factory Processing Map Packing and Packaging Diagram After-sales Service If you have interest in our product, pls feel free to contact us!
read moreBaby diapers (small packaging) automatic packaging machine (pre-made bag) can realize the automatic bagging and packaging of small bags with small quantity of baby diapers.
read moreBaby diapers automatic packaging machine (rolling film) can realize the automatic bagging of pet pants loose pieces.
read moreIntroducing our "QuickFlow" Sanitary Napkin Machine - the ultimate solution for fast, efficient and versatile production of high-quality sanitary napkins. With its cutting-edge technology and user-friendly design, this machine sets a new standard in the industry. Boasting an impressive speed, the QuickFlow Sanitary Napkin Machine ensures swift production, saving valuable time and increasing productivity. Say goodbye to long waiting hours and hello to an uninterrupted workflow that meets the demands of today's fast-paced world. Not only does the QuickFlow Sanitary Napkin Machine offer exceptional speed, but it also offers unmatched versatility. Whether it's day use or night use sanitary napkins, our machine enables you to effortlessly switch between different sizes to cater to varying customer preferences. Enjoy the flexibility to adapt to market trends and meet the ever-changing needs of your customers. One of the standout features of the QuickFlow Sanitary Napkin Machine is its user-friendly design. Changing sizes has never been easier or quicker. With just a few simple adjustments, you can switch from producing smaller-sized daytime napkins to larger nighttime pads, ensuring a hassle-free manufacturing process. Additionally, our machine is engineered with precision and attention to detail, guaranteeing the production of sanitary napkins that are of the highest quality. Each napkin is crafted with care, ensuring optimal comfort and absorbency, providing women with the confidence and peace of mind they deserve. Invest in the QuickFlow Sanitary Napkin Machine today and experience the revolution in sanitary napkin production. It's time to streamline your manufacturing process, elevate your brand, and meet the ever-growing demands of the market. Don't settle for less when it comes to quality and productivity - choose QuickFlow, the ultimate solution for sanitary napkin production.
brand:
RXpayment:
L/C,T/Tproduct origin:
Chinacolor:
Customizedshipping port:
Xiamen Portlead time:
120days
1) Adopt multiple sets of servo transmission, change the number only need to control on the touch screen
2) adopt synchronous belt synchronous wheel universal joint link drive.
3) Square steel frame, the real thickness of the panel is 30 mm.
4)the machine panel is processed in six sides, the fixed frame is made of 60 mm*60 mm solid square steel, the panel is fixed with screws and the base frame is made of 150 mm*150 mm*6 mm square pipe (as per the thickness in the market), and the rear transmission box is widened to 1100 mm for easy maintenance
5)Square steel frame, glue machine distribution cabinet part in the back of the machine, equipped with two working platform to place glue machine
Design speed |
800 pcs/min |
Stable speed |
600 pcs/min |
Pass precentage |
97% |
Work efficiency |
87%-90% |
Power source |
380V,50HZ |
Machine capacity |
about 260KW |
Air pressure |
0.6-0.8Mpa |
Machine weight |
About 70 T |
Machine size(L*W*H) |
33m×8.2m×4.5m |
Machine color |
Customized |
Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team.
More than 15 years experience focussing on hygiene machines.
10 CNC processing machine and 40 other processing machines.
Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on.
Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers.
Servo Driving Baby Pull up Pants Making Machine with High Speed
High Quality Used Full Servo Elastic Waistband Baby Diaper Machine Parameters of used baby diaper machine Year: 2016 Servo motor: MITSUBISHI Full servo Work speed: 400 pcs/min Power: 300 kw Product size: 4 sizes Weight: about 70 tons Machine size: 30*7*3.8M Used Baby Diaper Machine Details Description Qty Glue machine (Nordson ) 12 sets Deviation correcting device MAXCESS Mitsubishi Servo motor system 1 set Inkjet Machine 1 set stacking machine 1 set Stain detection and waste removal system 1 set Metal detector 1 set Automatic box sealing machine 1 set About RX Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team. More than 15 years experience focussing on hygiene machines. 10 CNC processing machine and 40 other processing machines. Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on. Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers. Factory Processing Map Packing and Packaging Diagram After-sales Service
HCH Second hand full servo automatic I & T shape baby diaper machine
Servo Driving Baby Pull up Pants Making Machine with High Speed
Second hand Economic type sanitary napkin making machine is a semi-auto machine.
Second Hand Full-Servo Underpad Making Machine Manufacturer Machine Configurations Condition Used Product Type Underpads Machine Processing Type Manufacture of High Speed Underpads machine in China (CD220-SV) Place of Origin Fujian, China (Mainland) Model Number CD220-SV Certification CE,ISO certificates Warranty 1 year After-sales Service Provided Engineers available to service machinery overseas Stable: yes Finished product: Underpad Control system full-automatic for underpads machine manufacture Waste rate less than 2% Operators 6-8 operators including packing underpads Underpads Machine Function & Parameter 1. Outputted products from this machine: Bed Mattress 2. Designed speed: 300 meters/min 3. Production speed: 220meters/min(width 600mm) 200meters/min(width 800mm) 4. Overall size of equipment: 22m(L)×3.5m(W)×2.5m(H) 5. Machine power: approx 300KW (380V, 50Hz) 6. Weight of equipment: about 70,000kgs 7. The main force bar of the machine frame:150*150*8 square tube; 8. Thickness of the faceplate is 30mm 8. Cutter bracket is adopted with dia 45 of steel bracket and pushing backboard. 9. Waste rate;≤ 2% Can produce 3-ply (PE film, fluff pulp, non-woven fabrics) or 5-ply (PE film, down tissue, fluff pulp, upper tissue,non-woven fabrics) bed mattress & pet mattress with high speed Dimension of the raw material, Parameter 1. Cotton core: 34g/m2 (include upper and down tissue, wood pulp which can use treated pulp, untreated pulp and semi-treated pulp, as well as recycled treated pulp) 2. Non-woven fabrics: 9g/m2 3. PE/PP: 15g/m2 4. SAP: 8g/m2 Raw material unwinding diameter and weight 1. Upper and down tissue Roll Diameter: Φ960mm Weight: 125kg 2. Non woven fabrics Roll Diameter: Φ960mm Weight: 125kg 3. PE/PP Roll Diameter: Φ600mm Weight: 60kg 4. Wood pulp Roll Diameter: Φ1500mm Weight: 500kg Finished product folding methods 1. C folding and two or three folding 2. Z folding and two or three folding 3. W folding and two or three foldin Packaging & Delivery Packaging Details: Seaworthy wooden cases and plastic film packaging Delivery Details: within 120days underpads Machine manufacture About RX Quanzhou Ruoxin Machinery Co.,Ltd have more than 150 employees. Equipped with Italy and Japan R&D technology team, professional spare parts processing team, assembly team and after service team. More than 15 years experience focussing on hygiene machines. 10 CNC processing machine and 40 other processing machines. Adopting famous and reliable spare parts , like Mitsubishi , Siemens, Sick, Schneider, NSK/SKF, BST, FIFE, SMC,Omron and so on. Turn-key service from start and its long life time service will be offered. Every year we sent more than 100 times technician out all over the world to install the machine or offer service and update the machine for old customers. Factory Processing Map Packing and Packaging Diagram After-sales Service
RX-HY600-HSV semi servo type under pad machine is a full auto specialized in manufacturing under pad machine.It can do sizes:400*600mm, 600*600mm and 900*600mm.
LF-130-SM diaper PE fim slitting machine is a professional manufacture hygiene materials machinery.
Used as raw materials for baby diapers and adult diapers.
